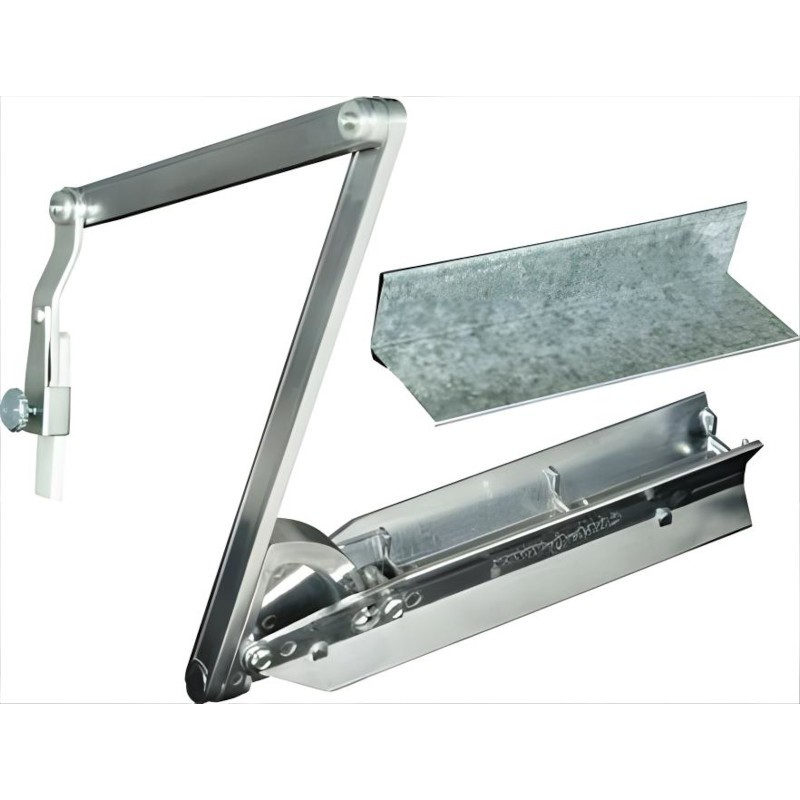

Curvomark Marker Contour Jumbo #4

CONTOUR MARKER – JUMBO NO 4
A larger version of the standard Contour Marker
The Jumbo Contour Marker (JCM) has been developed for use in the layout of large
diameter pipe, from 200 to 1200 mm
With its Structural Adaptor, the JCM can be used in the layout of extremely large
structural steel members up to 1200 mm wide
The JCM comes complete with a durable web strap that helps hold the unit in place during layout
A built-in adjustable dial bubble protractor ensures accurate center-line location
A soapstone crayon is included
Code Pipe ø
CNT4 200 -1200 mm
